SYZ Machine is the premier cv axle manufacturer and supplier in China. With years of experience, we have developped the upgraded ATV UTV axle and off-road axle series, they are more durable, safer and longevity. The upgraded axles are well received by customers with high quality and competitive price.

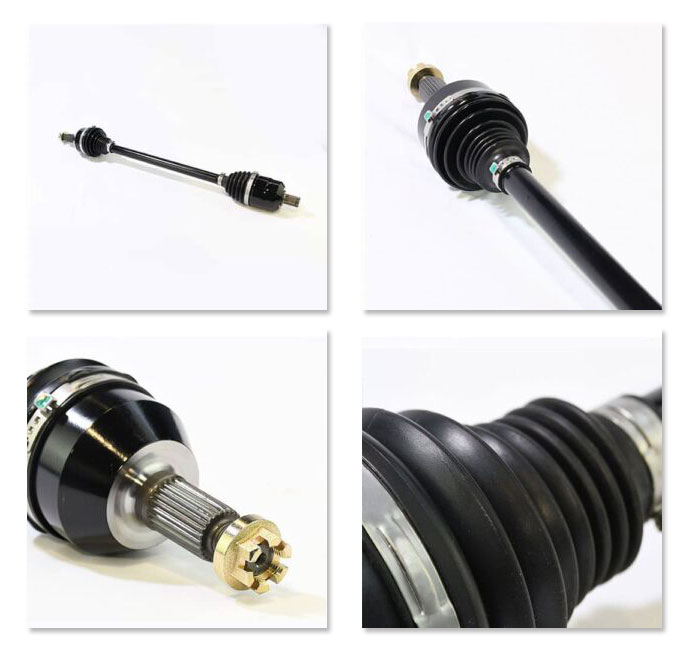

The constant velocity(CV) axle transmits the power of the differential to the wheels to drive the wheels. Its outside is splined to the hub bearing of the wheel and the inside is splined to the differential gear.

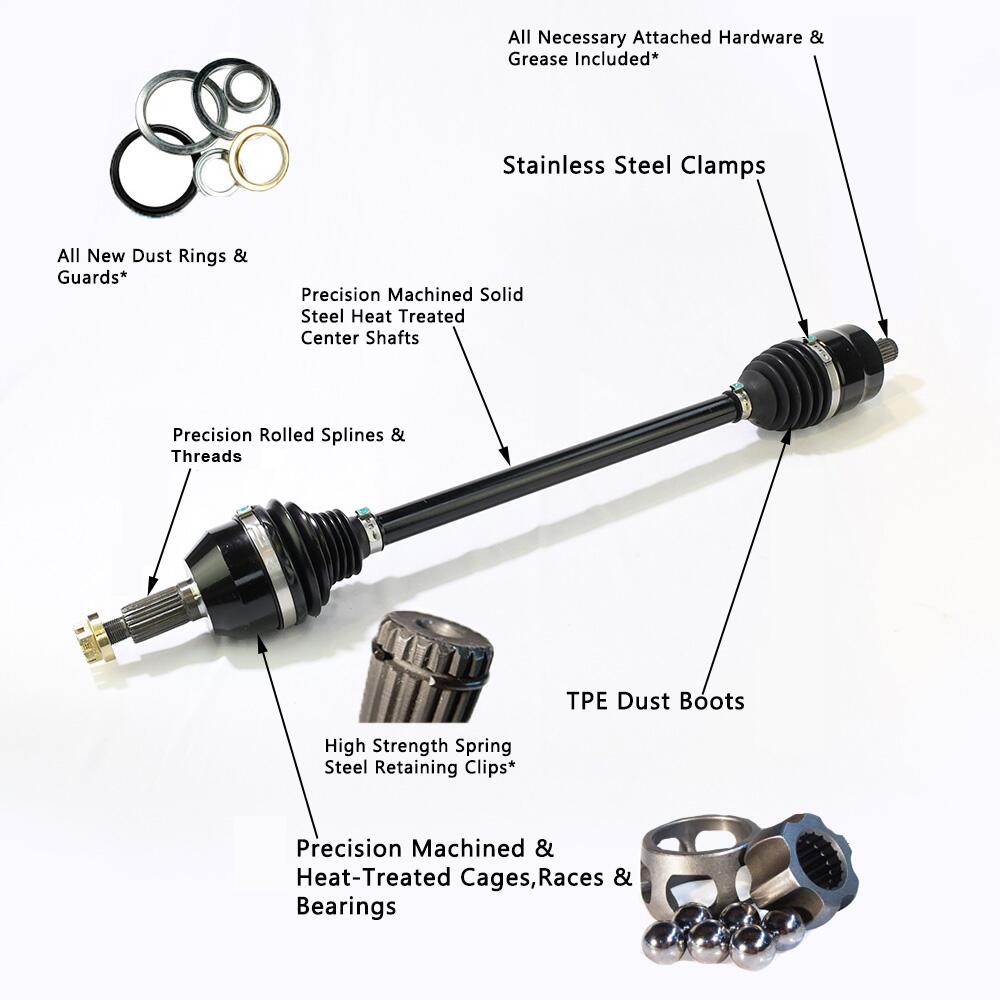

CV axle consists bell shape housing, shaft, inner race cage, balls, tripod joint, ball case, needle rollers, dustproof boots and clamp.
The cv joint is a key component of the cv axle. There are 2 most common types of cv joints, one is called “Rzeppa Joint”and the other one is called “Tripod Joint”. The difference between the 2 joints are configurations of cages and balls, position and function. The “Rzeppa Joint” consists of bell shap housing, cage, race, balls, circlip and precision machined spline. It can be designed at either end of the cv axles and used as a plunge cv joint or a fixed cv joint to connect the differential and wheel for extending and rotation. The “Tripod Joint”consists of housing, circlip, roller, spider and spacer, it’s a kind of plunging cv joint. As it is only designed at inner end to connect differential, it is also called inboard joint.
|1. Bell Shape Housing||40Cr（5140） HRC58-62|
|2. Shaft||40CrNiMoA（4340） Core: HRC30-34HRC Surface: HRC46-50HRC|
|3. Inner Race||20CrMnTi Core: HRC22-28，Surface: HRC58-62,|
|4. Cage||20CrMnTi Core: HRC22-28，Surface: HRC58-62,|
|6. Tripod Joint||20Cr（5120） HRC58-62|
|7. Ball Case||20Cr（5120） HRC58-62|
|8. Needle Rollers||GCr15（52100）|
|10. Clamp||Stainless Steel|
